Jacketed Reactors
During Exothermic reaction heat will be released by reactants and during Endothermic reaction heat will be absorbed. In both the processes temperature should be controlled as per process requirements for the perfect result. A jacketed vessel will facilitate the above.
Jacketed reactor has a jacket surrounding the main vessel. During reaction, temperature of reactants is controlled by circulating heating or cooling media through the jacket. Ideally suitable for the heating below 150 Centigrade (302 Fahrenheit). Commonly used heat transfer media include water, steam, hot oil such as Therminol™, and Dowtherm A.
Benifits
- Available in the range of 100 Liters to 30,000 Liters
- Offered in Stainless Steel 316, 304 or Carbon Steel material
- Spirals welded on outer surface of the main vessel for uniform circulation of heating or cooling media like steam, oil, water etc. And also provides extra strength to the main vessel
- Adheres to ASME and other standards with special attention to Argon and Arc welding procedures
- Save Energy using two part Jacket design for smaller batch
- GMP range of equipments available for Pharmaceutical industry. With mirror finish from 220 grit to 440 grit, smooth welding, flush grinding and Insulation with mirror finished S.S cladding
- Energy efficient direct drive design for the agitator , with VFD option to vary the RPM of the drive
- Agitator design to suit the reactants viscosity and density
- Vessel design with form cutter for the process which generates forms
- Save time and money with our Value added products and services like Process Automation, valves and fittings
- Manufactured as per your specifications
- Manufacturing facilities approved by the renowned consultants and Third party inspection agencies

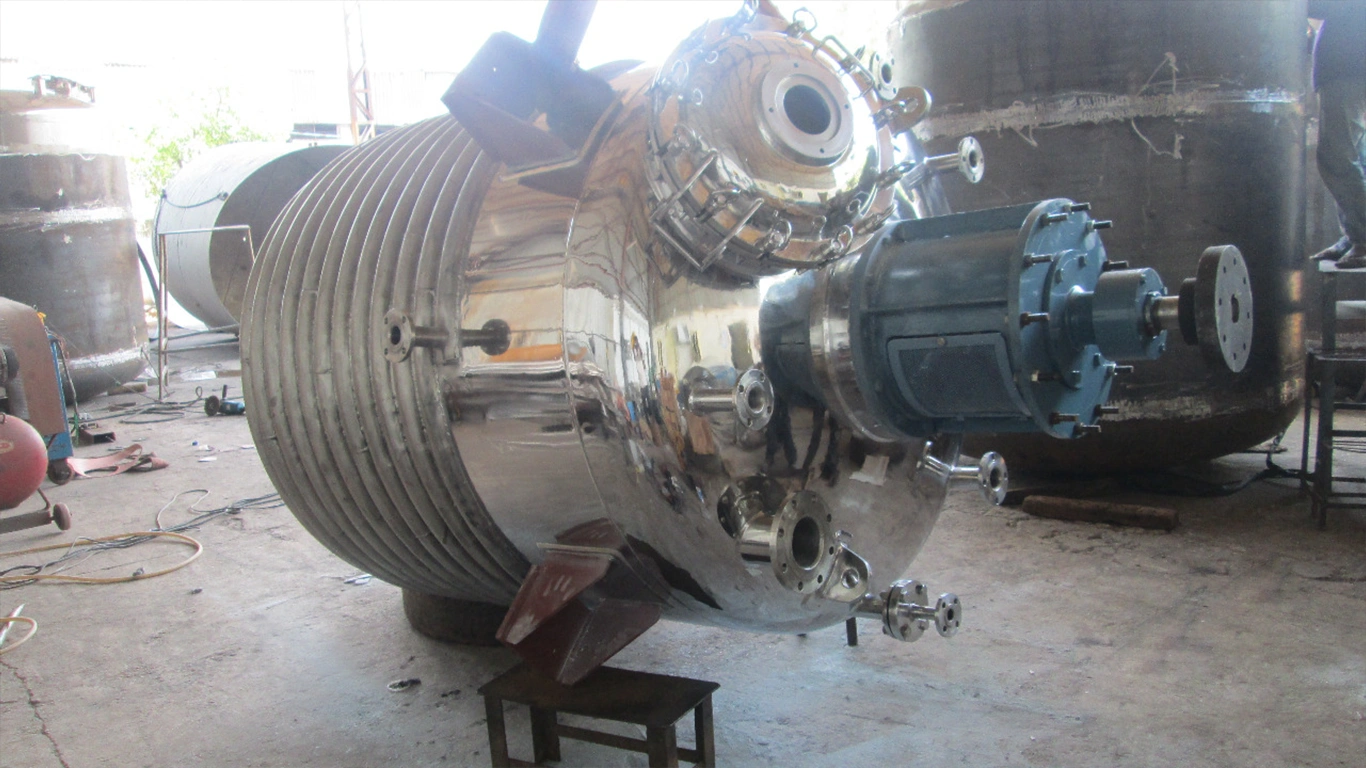

Limpet Coil Reactors
Limpet coil reactor vessels are used to control the temperature of the reactants with the help of heating or cooling media circulated through coils surrounding the main vessel. Ideally suitable for medium heat transfer requirement and heating application where heating media temperature is above 150 Centigrade (302 Fahrenheit). Coils are half piped welded on the outer side of the main vessel.
Benifits
- Limpet coil reactor can be used for heating or cooling of the reactants
- Suitable for high temperature ( Above 150 C) Thermic fluid oil like such as Therminol™, and Dowtherm
- Achieve heating and cooling in one reactor with Double coil design
- Available in the range of 500 Liters to 60,000 Liters
- Offered in Stainless Steel 316, 304 or Carbon Steel material
- GMP range of equipments available for Pharmaceutical industry. With mirror finish from 220 grit to 440 grit, smooth welding & flush grinding and Insulation with mirror finished S.S cladding
- Agitator design to suit the reactants viscosity and density
- Vessel design with form cutter for the process which generates forms
- Adheres to ASME and other standards with special attention to Argon and Arc welding procedures
- Save time and money with our Value added products and services like Process Automation, valves and fittings
- Manufactured as per your specifications
- Manufacturing facility approved by the renowned consultants and Third party inspection agencies
